Product description
Verderair PURE
The Verderair PURE is designed for heavy-duty operation, harsh chemicals and severe process conditions, such as the manufacturing of photovoltaic solar panels, power stations, acids, solvents and petrochemical facilities. The PURE range is machined from a single block of virgin grade PE or PTFE. By machining the pump housing there are no welding points, which reduces material stress points and has superior handling properties against mechanical forces.

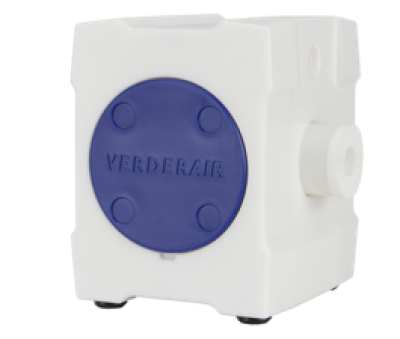

VA P08
The Verderair PURE VA-P08 is a compact, high efficient air operated double diaphragm (AODD) pump, produced from one-piece solid pure PE or PTFE. Suitable for small transfer/drum emptying or as a basic dosing pump.
| Property | |
| Max. flow | 19 l/min |
| Max. flow | 19 l/min |
| Max. discharge pressure | 7 bar |
| Max. discharge pressure | 7 bar |
| Liquid conn. | 1/4" NPT |
| Liquid conn. | 1/4" NPT |
| Maximum suction lift (dry) | 9 m wc |
| Maximum suction lift (dry) | 9 m wc |
| Certificates | ATEX |
| Certificates | ATEX |
| Air conn. | R 1/8" |
| Air conn. | R 1/8" |
| Maximum suction lift (wet) | 1 m wc |
| Maximum suction lift (wet) | 1 m wc |
| Max. particle size | 2.2 mm |
| Max. particle size | 2.2 mm |
| Viscosity | 500 mPa.s |
| Viscosity | 500 mPa.s |
| Max. temperature | 100 °C |
| Max. temperature | 100 °C |
| Materials liquids parts | UHMW PE, Conductive PE, PTFE, Conductive PTFE |
| Materials liquids parts | UHMW PE, Conductive PE, PTFE, Conductive PTFE |
| Materials valves seats | UHMW PE, Conductive PE, PTFE, Conductive PTFE |
| Materials valves seats | UHMW PE, Conductive PE, PTFE, Conductive PTFE |
| Materials valve balls | EPDM, PTFE, Stainless Steel, Cylinder valve |
| Materials valve balls | EPDM, PTFE, Stainless Steel, Cylinder valve |
| Materials diaphragms | EPDM (overmolded), PTFE (overmolded) |
| Materials diaphragms | EPDM (overmolded), PTFE (overmolded) |
| Material center section | UHMW PE, Conductive PE, PTFE, Conductive PTFE |
| Material center section | UHMW PE, Conductive PE, PTFE, Conductive PTFE |
