Product description
Verderair e-PURE
The Verderair e-PURE electrically driven double diaphragm pump uses a new kind of technology for diaphragm pumps. This pump series works according to a horizontal fluid flow path, which gives a more energy efficient and less friction loss fluid path. A direct result is reduced maintenance, lower energy costs and a longer life time. The pump housing is manufactured from solid machined PTFE or PE (UHMW). The other wetted parts are made from PEEK and SS 316L or Hastelloy C or Duplex SS. The e-PURE ensures a sustainable solution combined with diaphragm pump advantages.

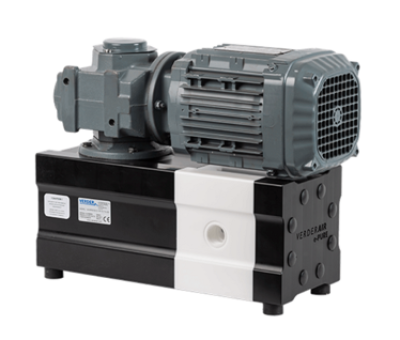

VA-EP30
The Verderair VA-EP30 is suitable for low capacity dosing and continuous flow applications pumping abrasive and viscous fluids.
| Property | |
| Max. flow | 30 l/min |
| Max. flow | 30 l/min |
| Max. discharge pressure | 5 bar |
| Max. discharge pressure | 5 bar |
| Max. particle size | 2 mm |
| Max. particle size | 2 mm |
| Certificates | ATEX |
| Maximum suction lift (wet) | 8.5 m wc |
| Maximum suction lift (wet) | 8.5 m wc |
| Maximum suction lift (dry) | 1.6 m wc |
| Maximum suction lift (dry) | 1.6 m wc |
| Max. Temperature PE | 70 °C |
| Max. Temperature PE | 70 °C |
| Max. Temperature PTFE | 95 °C |
| Max. Temperature PTFE | 95 °C |
| Materials liquids parts | UHMW PE, PTFE, PEEK, SS 316L |
| Materials liquids parts | UHMW PE, PTFE, PEEK, SS 316L |
| Materials flappers | PEEK |
| Materials flappers | PEEK |
| Materials diaphragms | PTFE (overmolded) |
| Materials diaphragms | PTFE (overmolded) |
| Material center section | UHMW PE, PTFE |
| Material center section | UHMW PE, PTFE |
