Product description

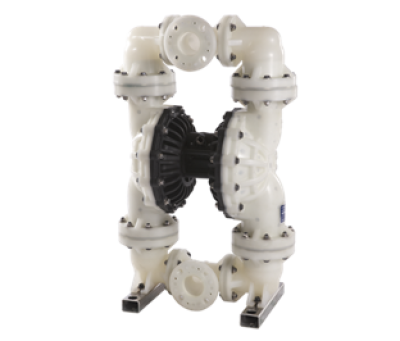

VA80 (HE) non metallic
The Verderair VA80 (HE) non-metallic pump is a compact, high efficient air operated double diaphragm (AODD) pump suitable for larger transfer/container emptying or as a basic dosing pump.
| Property | |
| Max. flow | 1059 l/min |
| Max. flow | 1059 l/min |
| Max. discharge pressure | 7 bar |
| Max. discharge pressure | 7 bar |
| Air conn. | 3/4" BSP/NPT |
| Air conn. | 3/4" BSP/NPT |
| Liquid conn. | Combi flange DIN PN10/16 |
| Liquid conn. | Combi flange DIN PN10/16 |
| Maximum suction lift (dry) | 2.4 m wc |
| Maximum suction lift (dry) | 2.4 m wc |
| Certificates | CE |
| Certificates | CE |
| Liquid conn. | DN80 - 3" Ansi 150 |
| Liquid conn. | DN80 - 3" Ansi 150 |
| Maximum suction lift (wet) | 8.5 m wc |
| Maximum suction lift (wet) | 8.5 m wc |
| Max. particle size | 13 mm |
| Max. particle size | 13 mm |
| Viscosity | 25000 mPa.s |
| Viscosity | 25000 mPa.s |
| Max. temperature | 66 °C |
| Max. temperature | 66 °C |
| Materials liquids parts | Polypropylene, Kynar |
| Materials liquids parts | Polypropylene, Kynar |
| Materials valves seats | Acetal, Aluminium, Buna N, Geolast, Polypropylene, Kynar(PVDF), Hytrel, Santoprene, Stainless Steel, Viton |
| Materials valves seats | Acetal, Aluminium, Buna N, Geolast, Polypropylene, Kynar(PVDF), Hytrel, Santoprene, Stainless Steel, Viton |
| Materials valve balls | Acetal,Buna N, Geolast, Hytrel, Santoprene, Viton, PTFE, Neoprene, Weighted Neoprene |
| Materials valve balls | Acetal,Buna N, Geolast, Hytrel, Santoprene, Viton, PTFE, Neoprene, Weighted Neoprene |
| Materials diaphragms | PTFE (2 piece), Hytrel, Buna-N, Santoprene, Viton, Geolast, Neoprene (overmolded) |
| Materials diaphragms | PTFE (2 piece), Hytrel, Buna-N, Santoprene, Viton, Geolast, Neoprene (overmolded) |
| Material center section | Polypropylene, Aluminum |
| Material center section | Polypropylene, Aluminum |
