Product description
VA10 non metallic

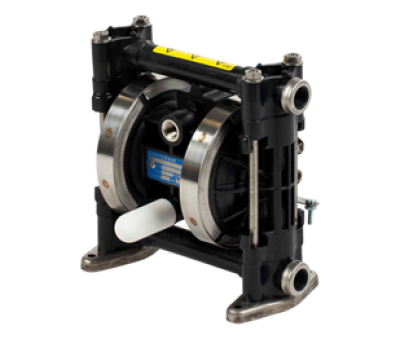

The Verderair VA10 non-metallic pump is a compact, air operated double diaphragm (AODD) pump suitable for small transfer/drum emptying or as a basic dosing pump.
| Property | |
| Max. flow | 25 l/min |
| Max. flow | 25 l/min |
| Max. discharge pressure | 7 bar |
| Max. discharge pressure | 7 bar |
| Air conn. | 1/4" BSP/NPT |
| Air conn. | 1/4" BSP/NPT |
| Liquid conn. | 3/8" BSP/NPT |
| Liquid conn. | 3/8" BSP/NPT |
| Maximum suction lift (dry) | 3.7 m wc |
| Maximum suction lift (dry) | 3.7 m wc |
| Certificates | ATEX |
| Certificates | ATEX |
| Maximum suction lift (wet) | 6.4 m wc |
| Maximum suction lift (wet) | 6.4 m wc |
| Max. particle size | 1.6 mm |
| Max. particle size | 1.6 mm |
| Viscosity | 1000 mPa.s |
| Viscosity | 1000 mPa.s |
| Max. temperature | 65 °C |
| Max. temperature | 65 °C |
| Materials liquids parts | Polypropylene, Acetal |
| Materials liquids parts | Polypropylene, Acetal |
| Materials valves seats | Acetal, Polypropylene, Stainless Steel |
| Materials valves seats | Acetal, Polypropylene, Stainless Steel |
| Materials valve balls | PTFE, Hytrel, Stainless Steel, Buna-N |
| Materials valve balls | PTFE, Hytrel, Stainless Steel, Buna-N |
| Materials diaphragms | PTFE, Hytrel, Buna-N, Santoprene |
| Materials diaphragms | PTFE, Hytrel, Buna-N, Santoprene |
| Material center section | Polypropylene |
| Material center section | Polypropylene |
