Product description

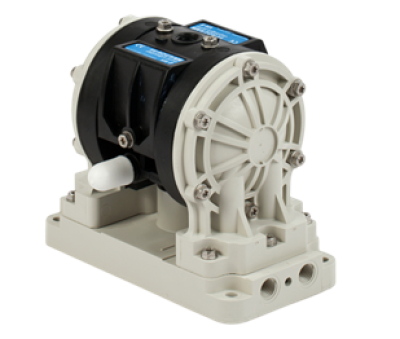

The Verderair VA08
non-metallic pump is a compact, air operated double diaphragm (AODD) pump suitable for small transfer/drum emptying or as a basic dosing pump.
| Property | |
| Max. flow | 19 l/min |
| Max. flow | 19 l/min |
| Max. discharge pressure | 7 bar |
| Max. discharge pressure | 7 bar |
| Air conn. | 1/4" BSP/NPT |
| Air conn. | 1/4" BSP/NPT |
| Liquid conn. | 1/4" BSP/NPT |
| Liquid conn. | 1/4" BSP/NPT |
| Maximum suction lift (dry) | 2.5 m wc |
| Maximum suction lift (dry) | 2.5 m wc |
| Certificates | ATEX |
| Certificates | ATEX |
| Maximum suction lift (wet) | 4.4 m wc |
| Maximum suction lift (wet) | 4.4 m wc |
| Max. particle size | 1.5 mm |
| Max. particle size | 1.5 mm |
| Viscosity | 500 mPa.s |
| Viscosity | 500 mPa.s |
| Max. temperature | 82 °C |
| Max. temperature | 82 °C |
| Materials liquids parts | Polypropylene, Acetal, Kynar |
| Materials liquids parts | Polypropylene, Acetal, Kynar |
| Materials valves seats | Acetal, Polypropylene, Kynar |
| Materials valves seats | Acetal, Polypropylene, Kynar |
| Materials diaphragms | Santoprene, PTFE |
| Materials diaphragms | Santoprene, PTFE |
| Material center section | Polypropylene |
| Material center section | Polypropylene |
